Electric Vibrating Sieve Machine for Powder

Electric Vibrating Sieve Machine brief info:

Electric vibrating sieve machine is mainly used for separating different sizes of dry powder and granules and liquid materials vibrating filtering. Vibrating sieve machine uses upright vibrating motor as vibrating source. Eccentric hammers are equipped on the top and bottom of the motor. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the surface of the sieve mesh. So as to make three dimension powers more obviously and successfully and the scale of processed materials enlarged. Adjusting the phase angle on the top and bottom to change the motion orbit of the materials on the sieve surface.


Vibrating sieve machine with screw conveyor:



Different Vibrating sieve machine types show:


Vibrating Sieve Machine Features and advantages:

  1. The electric vibrating sieve machine for powders can separate and filter dry, wet and liquid materials within 500 mesh like dry, wet, refined, coarse, heavy and light, liquid and pasty materials.

  2. Experienced factory manufacturer ensure the vibrating sieve machine commercial and competitive prices and also high quality.

  3. Designed Diameter of the vibrating sieve machine can from ф400mm-ф2200mm and moves at a circular motion.

  4. Can be installed Five layers/decks of screen mesh at most.

  5. The flexible mesh frames are easy to stretch and replace in a very short time (3-5 minutes), so that efficiency can be raised greatly.

  6. With multi-layers, stable structure, strong vibrating force, large sieving capacity, high sieving efficiency, low noise, low pollution, easy maintenance and safe operation.

  7. Fully sealed. No jam for the screen nesh. No dust flying or liquid leakage during working.

  8. Discharge impurities and coarse materials automatically and can work continuously.

  9. Made of stainless steel 304 or 316L to meet different requirements.

Electric vibrating sieve working function show:



Electric vibrating sieve application show:

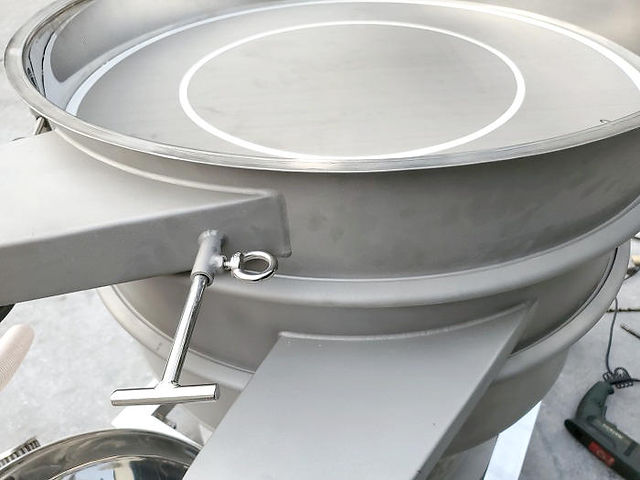

Electric vibrating sieve details show:

Main parts of the electric vibrating sieve machine including :inlet, dust cap, screen mesh, outlet, mesh rack, vibrating motor, quick release clamps, Springs, Mechincial base body, upper heavy hammer and lower heavy hammer. etc.


Vibrating sieve machine mainly Screening Powders:

Electric vibrating sieve machine mainly sieving powder show.

Electric vibrating sieve machine selection guide:

The proper selection of the vibrating sieve machine depends on the sieving materials, number of layers, every screen mesh size, load capacity, material moisture, viscous and corrosive etc:


Please show us the following questions, Then we can send you response quotation and suggest models soon.


1. Screening material : _____


2. How many layer(s):_______


3. Every mesh size:______ mesh . ______ mesh. ...


4. Capacity: :________kg/ hour


5. Moisture, viscous, corrosive ________


6. Voltage:______V, Frequency:______HZ, 3 phase


7. Vibrating screen structure choose (Q235A), SS304, or SS316


Thank you very much for your time and attention visiting our website! Just contact us Now!
