Fine Flour starch powder screening tumbler sieve machine
Tumbler sieve machine brief info:
Screen of Layer : 1 to 5 layers
Diamater : 400 to 2600(mm)
Material : Carbon steel, 304 or 316L stainless steel
Diamater : 400 to 2600(mm)
CAD drawing : Free design by your application site.
Customized service : Custom the machine by your need.
Sieving precision : Up to 500 Mesh(≥0.028mm)
Flour powder sieving Tumbler sieve machine is used for screening of bulk materials in all industries and is classified safely. Reeger machinery tumbler screening machine is currently the most effective simulation principle of artificial screening motion(screening accuracy, efficiency, and screen life are 5-10 times that of conventional vibration screens), which meets all fine and ultrafine ranges of powders and particles material, especially suitable for difficult materials.
The tumbler sieve machine working principle made the product a high-efficiency sieving machine especially for large capacity and high sieving precision screening needs.
Tumbler fine sieve Technical data:
Model | RY1000 | RY1200 | RY1600 | RY2000 | RY2200 | RY2600 |
Diameter | 1000mm | 1200mm | 1600mm | 2000mm | 2200mm | 2600mm |
Area(M2) | 0.71 | 1.11 | 1.83 | 3.05 | 5.18 | 5.31 |
Mesh Size | 0.028mm-12mm | 0.028mm-12mm | 0.028mm-12mm | 0.028mm-12mm | 0.028mm-12mm | 0.028mm-12mm |
Layer | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
Power | 1.5KW | 1.5KW | 3.0KW | 4.0KW | 4.0KW | 5.5KW |
Frequency | 950 | 950 | 950 | 950 | 950 | 950 |
Net Cleaning | custom | custom | custom | custom | custom | custom |
Notes: Net Cleaning can custom according to customer requirements: you can choose Bouncing ball,Ultrasonic device,Rolling brush or toghther.

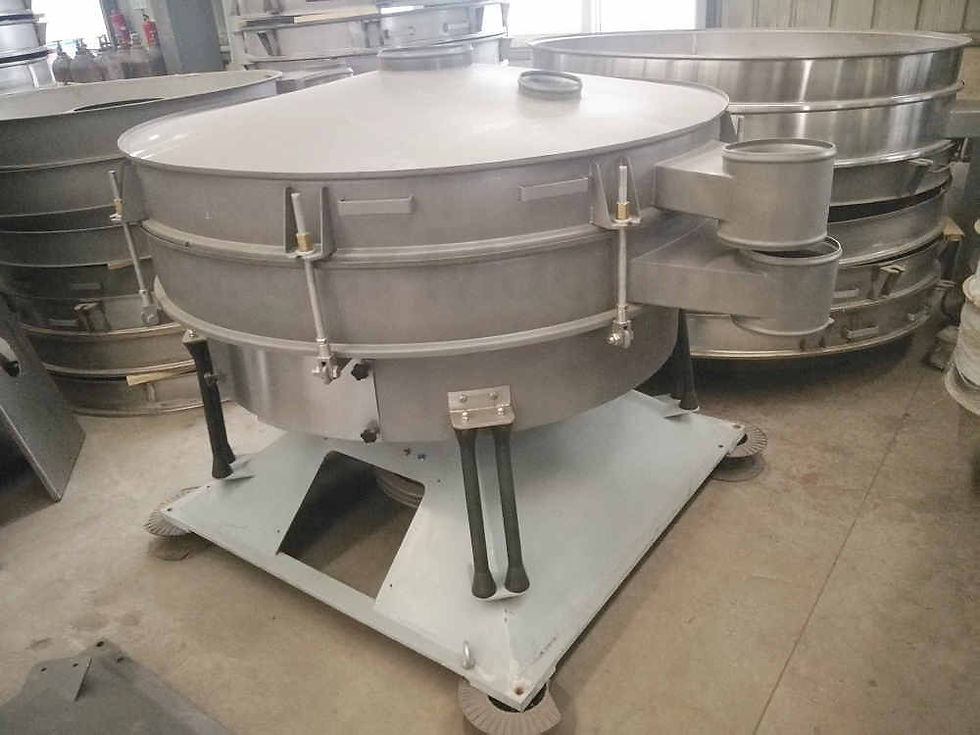

Tumbler sieve machine details pictures:
Reeger tumbler sieve machine advantages:
1. Screening efficiency up to 90%-98%
2. High-efficient screen cleaning device design and will suggest the most suitable and right cleaning systems for your needs. the screen cleaning device system including: 1. silicone rubber ball, 2. ultrasonic cleaning device, 3. brush cleaning. Right screen mesh cleaning system can improve your screening efficiency and capacity.
3. Sealed and dust removal for safe operation and quality sieving materials.
4. Quick-open screen frame locking device ensure the screen change time less. You can also add pneumatic lifting device for faster screen changing for your frequent screen change.
5. Low working noise less than 75db
6.Long sieving work life because of no vibration design principle and low energy consumption.
Tumbler sieve machine main screening powders show:
Application ranges of tumbler sieve machine:
Tumbler screening machine is widely applied in a variety of sieving industries. For example, the tumbler screen can be used to remove impurities in Food flour or other food powder industries. The chemical industry for solids and liquids separation, Products are widely used in food powder, environmental protection biological insects, dried fruit and vegetable spices, chemically synthesized powder particles, plastics, resins, Chinese and Western medicines, paint coatings, ceramics, metal powders, mineral powders, electronic magnetic materials, paper pulp, environmental protection materials and other industries. to classify light, heavy, small, dry, wet,dusty, liquid, stickly and all kinds of materials for particle sizes sieving or filtering function.
Attention:
Free CAD design for your powder screening process ensure your input and output connecting right and easy operating for your working site operation. If you have any questions for the tumbler sieve machine, please CONTACT US
