Large capacity trommel screen


Trommel screen brief info:

Installation Method: Horizontal or Inclined

Handling Capacity: 6-60 T/H

Drum Diameter: 600-3, 000 mm

Drum Length: 2.4-12 M

Rotate Speed: 7-20 Rpm

Screen Hole Size: According to Customer′s Requirement

Number of Screen Segments: 1-5

Screen Material: Carbon Steel/Stainless Steel SUS304/316

Cleaning Device: Brushes

Trommel screen characters:

Trommel screen is consisting of five parts as drum, frame, hopper, reducer and motor. After the material into the drum, on one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes.

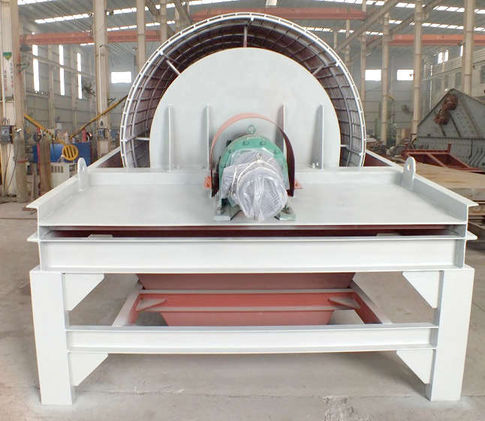

Trommel screen pictures show:


Different sizes of items picked up after falling into the funnel, then shipped by hand or gravity flow to the finished product.



Trommel screen technical data:

Model

Power (kw)

Cylinder Diameter (mm)

Cylinder Length (mm)

GTS1015

3

1000

1500

GTS1020

4

1000

2000

GTS1225

5.5

1200

2500

GTS1530

7.5

1500

3000

GTS1545

11

1500

4500

GTS1848

15

1800

4800

GTS2055

22

2000

5500

GTS2265

30

2200

6500



Trommel drum screen features and advantages:

Automatic cleaning brush on the top of the trommel screen to reduce screen mesh blocking.Screen mesh adopts a modular design, which is fixed to frame with bolts, so it is easy to replace. Widely using the range, reasonable design, large capacity, high screening accuracy. Durable structure, low noise, stable operation, easy maintenance, long lifespan.Installing an enclosed cover entirely the screen drum, so that no material leakage, no dust pollution, improve working condition for operators as well.
