Vibro sieving machine price

Vibro sieving machine brief info:

Vibro sieving machine characters:

·Application: Powder, Granules, Liquid, Bulk Solids and other sizing needs.

·Diameter of screen(mm): 400-2000

·Sieving precision: 500 mesh

· Layer:1-5

·Power(KW): 0.25-4

·Voltage for: 110V 220V 240V 380V 415V 450 V and 550V

·Structure material option:316Lstainless steel,304 stainless steel, carbon steel.

· Customize service: All parts can be customized



Reeger machinery electric vibro sieving machine is an efficient and commercial powder sieving machine designed for sieving fine materials. It can efficiently screening foreign matters, filtering impurities, and grade materials with high quality product results.



vibro sieving machine commercial price



Vibro sieving machine technical parameters:

Model

Diameter (mm)

Efficient dia(m2)

Layer

Power(kw)

Size (mm)

R400

∅ 400

∅ 380

1-5

0.25

580*580*560

R600

∅ 600

∅ 600

1-5

0.55

800*800*750

R800

∅ 800

∅ 750

1-5

0.75

900*900*750

R1000

∅ 1000

∅ 900

1-5

1.1

1160*1160*810

R1200

∅ 1200

∅ 1100

1-3

1.5

1360*1360*980

R1500

∅ 1500

∅ 1450

1-3

2.2

1850*1850*1130

R1800

∅ 1800

∅ 1750

1-3

3

2200*2200*1050

R2000

∅ 2000

∅ 1950

1-3

4

2350*2150*1125

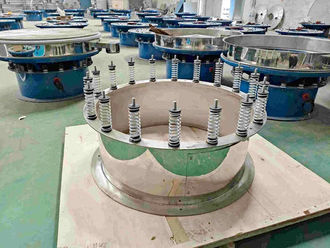

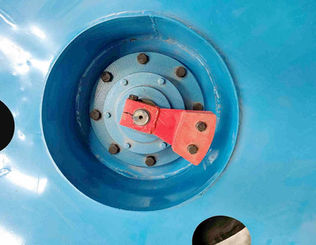

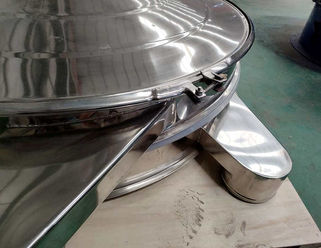

Vibro sieving machine details pictures:


Vibro sieving machine Main working principles:


The round rotary vibrating sieve is one kind of high-precision screening and filtering machine . It is a high accuracy fine powder sieving machinery and is suitable for particle (granule) powder and mucus material sieving.


The vertical vibrating motor is the vibrating power of the machine, There are two eccentric blocks on the vibrating motor's upper and down. The eccentric blocks mainly make cubic element movement (horizonal, up-down, and tilting) when the motor working. By changing the eccentric block's included angle (the upper and down) and numbers, the track that material moves on the mesh, will be changed So that the screening target will be realized.

commercial vibro sieving machine structures

Vibro sieving machine Features:

  1. Easy to replace the sieve mesh and only need to take 3-5 min;

  2. No plugging ,the sieving can be up to 500um or 0.028mm;

  3. The sieve can be up to max 5 layers and get 6 size grading;

  4. easy to install and move.With a small volume and the light weight.

  5. Special mesh frame design ensure long sieving life for mesh, and the screen mesh is easy to

  6. change and clean.

  7. All- closed design, no dust pollution

  8. Good enclose and little noise;

  9. The outlet's location can be adjusted to anywhere you need, it is very easy to form

  10. producing line. We offer connecting drawing for you.


Vibro sieving machine applications show:

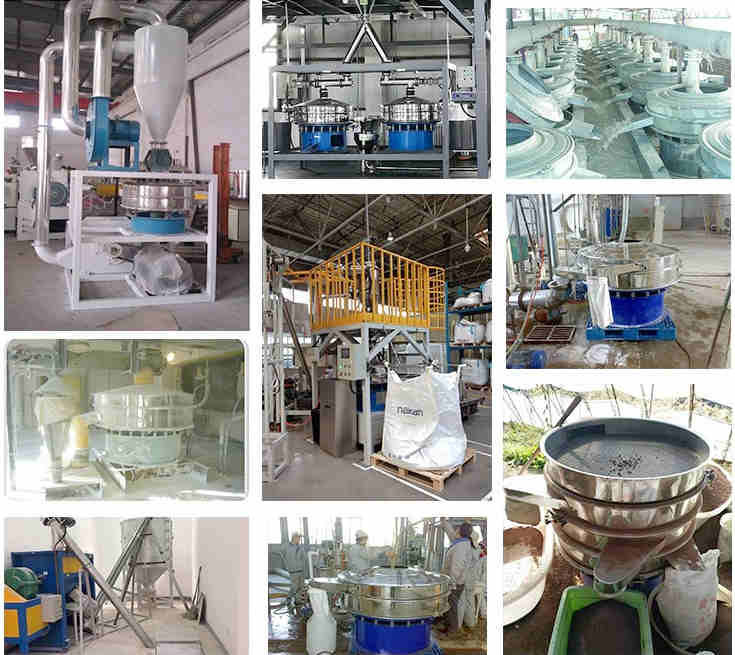

commercial vibro sieving machine industrial applications

Vibro Sieving Machine FAQs


Q: How do you ensure the quality of the vibrating sieving machines?

A: Reeger machinery team has done the powder sieving machines export business for more than 15 years experience , strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.


Q: What payment methods your company accept?

A: We accept most of the payment methods, but mainly accept T/T, L/C at sight.


Q: How long is the warranty time for your products?

A: Our officially promised warranty time is 12 months after commissioning.All equip with a set of spare parts free.


Q: I haven' t done business with you company before, how can I trust your company ?

A: Reeger machinery team has done the powder sieving machines export business for more than 15 years experience ,We honored CE SGS certificates. You can visit our factory and we can send you all of the Company qualifications and related documents.


Q: What ' s the shipment terms and delivery time of your company?

A: Well, FOB, CFR, CIF, EXW are the normal term. The delivery time depends on the quantity of your order. Manufacturing time Usually is 3 to 30 days. For some customized machine 45-60 days is necessary.
